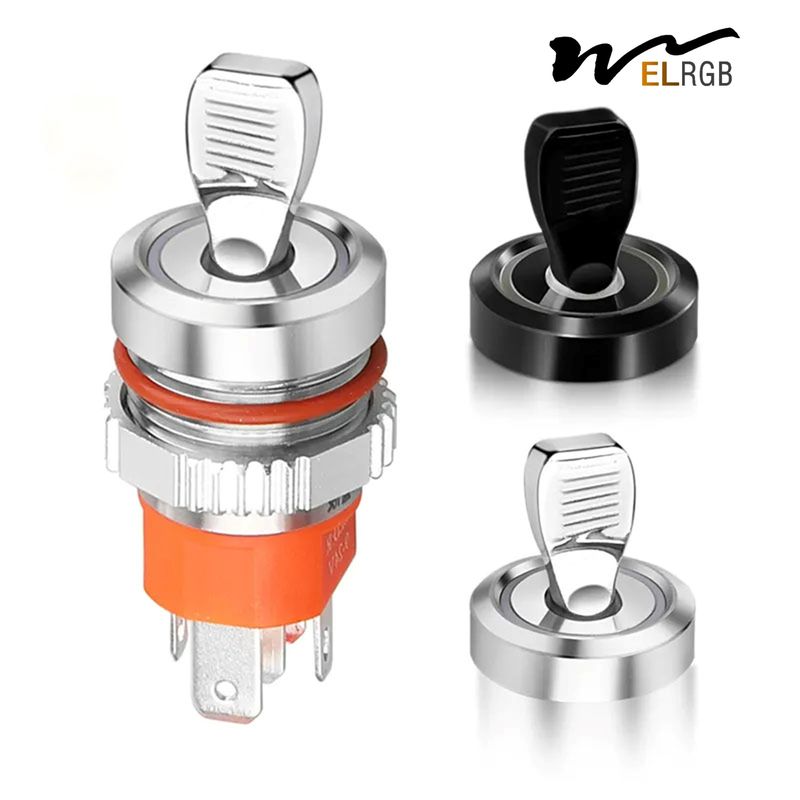

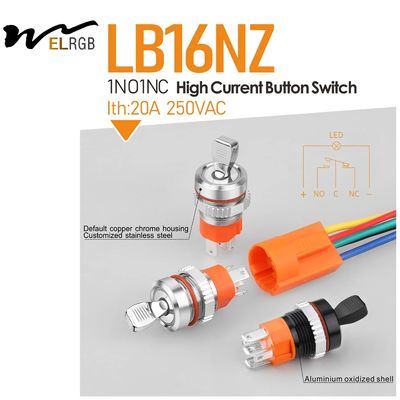

16mm 16A Metal Toggle Switch LED Light Spare Parts Push Button Toggle Switch

Name: 16mm 16A Metal Toggle Switch LED Light Spare Parts Push Button Toggle Switch
Brand: Guangzhou Weiran Industry Co., Ltd.
SKU: WE-LB16NZ
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Zhejiang, China

Brand Name: WELRGB

Certification: CCC,CE

Model Number: WE-LB16NZ

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $3.50/pieces 10-99 pieces

Packaging Details: Packaged in styrofoam box - Inner box-Out carton

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            16mm 16A Metal Toggle Switch, Toggle Switch LED Light Spare Parts, 16mm push button toggle switch


Whether The Smart:	NO	Protection Level:	IP65/IK10
Max. Current:	Ith:20A	Max. Voltage:	250VAC
LED:	Yes	Diameter:	16mm
Switch Combination:	1NO1NC	Operation Type:	Latching
Emitting Type:	Ring LED	Lamp Color:	Red Green Yellow Blue White
Lamp Voltage:	2V/3V/6V/12V/24V/36V/110V/220V/250V	Waterproof/Protection:	IP65/IK10
Rated Voltage/Current:	AC250V/20A	Shell Metal:	Chromium Plated Brass/Aluminum Oxide/Stainless Steel/Stainless Steel/

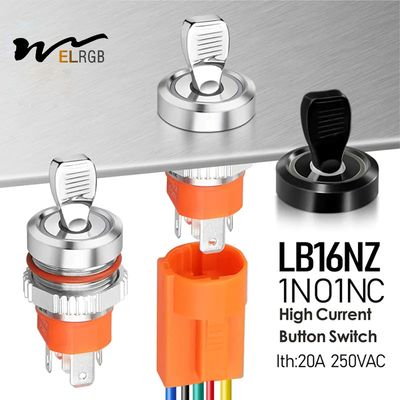

Product Name:	16mm 16A High Current IP65 Waterproof Metal Button Switch

Whether The Smart:	NO
Protection Level:	IP65/IK10
Max. Current:	Ith:20A
Max. Voltage:	250VAC
LED:	Yes
Diameter:	16mm
Switch Combination:	1NO1NC
Operation Type:	Latching
Emitting Type:	Ring LED
Lamp Color:	Red Green Yellow Blue White
Lamp Voltage:	2V/3V/6V/12V/24V/36V/110V/220V/250V
Waterproof/Protection:	IP65/IK10
Rated Voltage/Current:	AC250V/20A
Shell Metal:	Chromium Plated Brass/Aluminum Oxide/Stainless Steel/Stainless Steel/
Product Name:	16mm 16A High Current IP65 Waterproof Metal Button Switch

Description

16mm 16A Metal Toggle Switch LED Light Spare Parts Push Button Toggle Switch

16mm 16A High Current Metal Toggle Switch IP65 Waterproof Push Button Factory Direct Sales With Indicator 5-24V 2

Product Description

Model Description
Model NO.	WELB16NZ
Mounting diameter	16mm
Head shape	Plat Head/High Head
Switch Combination	1NO1NC
Operation type	Latching
Illuminating type	Ring LED
Illuminating color	red/green/blue/yellow/white
Lamp voltage	2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell material	Chrome plated brass/ Aluminum oxide/ Stainless Steel / Titanium plated stainless steel

16mm 16A Metal Toggle Switch LED Light Spare Parts Push Button Toggle Switch 0

The Others Parameters
Project	Parameter	Project	Parameter
Contact type	Fast moving single contact	Toggle Angle	On 12 °
Contact Resistance	≤50mΩ	Actuating Force	about 6.3 ±0.8N
Insulation Resistance	≥1000mΩ	Mounting panel thickness	≤5mm.
Dielectric Strength	1000VAC min	Nut torque	0.85-1.2N.m

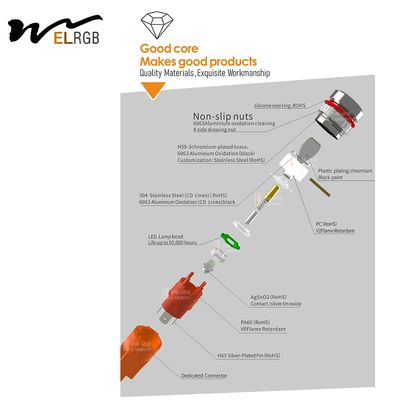

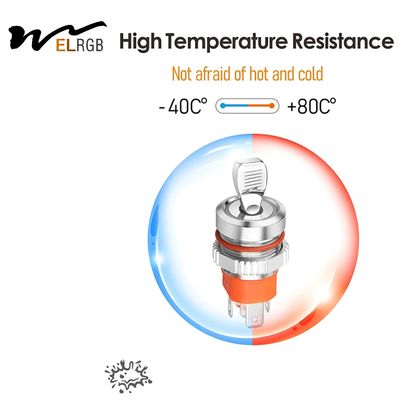

Ambient Temperature	-40℃~+80℃	Outshell Handle	304Stainless Steel/Chrome plated brass/ Aluminum oxide PA66+GF20/ bright chrome plating (resistance plating),PA66+GF20/ black matte spray paint
Protection Levels	IK10	Diffuser	PC,V2
Electrical Life	Resistive load AC220V/15A, DC24V/15A: 20,000 times; AC220V/8A, DC24V/8A: 40,000 times; AC220V/3A, DC24V/3A: 100,000 times	Nut Base Seat/ Bottom Seat	6063 Pickling (RoHS) PA66

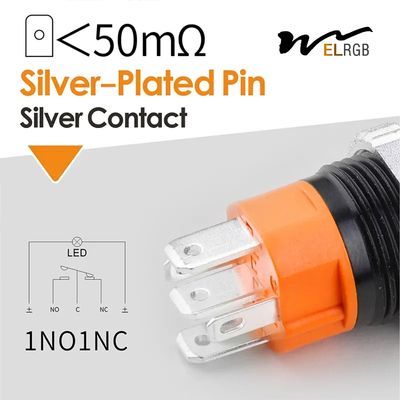

Mechanical Life	Latching: 500,000 times	Pins	H65 Silver Plated (RoHS)

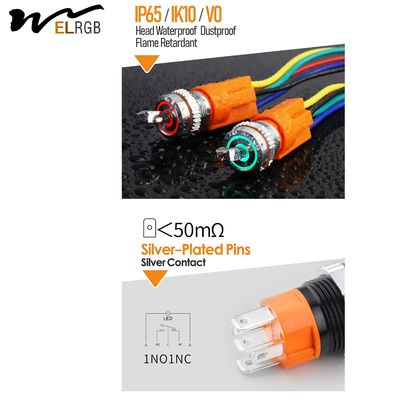

Waterproof	IP65(custom)	Contact	AgSnO2(RoHS)

Switch Rated Load
Project		Parameter
Reated Insulation Voltage		AC250V
Fusing Current		20A
Rated Voltage		DC12V	DC24V	AC110V	AC220V
Rated Current	Nonreactive Load	15A	15A	15A	15A
	Inductive Load	4A	4A	4A	4A

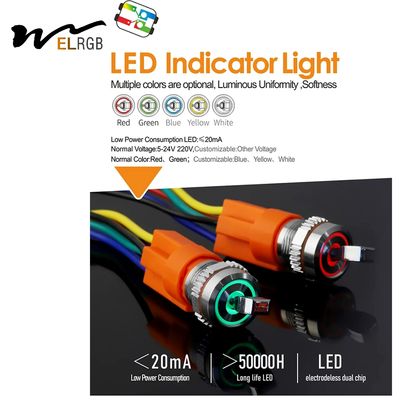

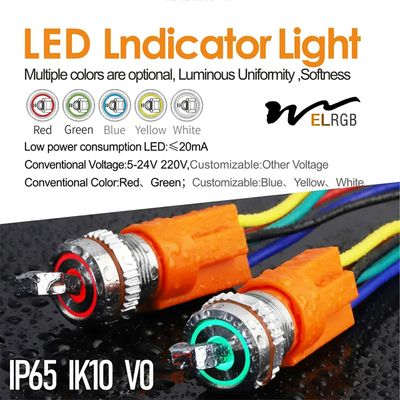

Led Lamp Parameters
Project	Parameter
Led type	High Brightness LED lamp,cool
Luminous color	Red,Green,Blue,Yellow,White
Rated Voltage	AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current	≤20mA
Reference Life	50,000hours
